Specifications

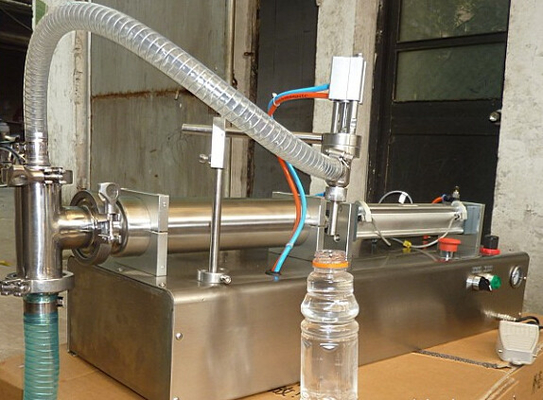

1, Semiautomatic oil filling machine
2, Capacity: 100-300bottle/hour
3, Filling amount: 100-5000ml
4, CE, ISO certification
Machine advantage:
1.It is suit for all kinds of bottles.
2.The machine is semiautomatic .
3.The service life is long.
4. Our company have passed CE, ISO certification.
Characteristic:
1. This oil filling machine used in lubricating oil, cooking oil and other fats, oils, oil filling materials’ packaging and packing measure.
2. This oil filling machine is mainly constituted of magnetic cylinder, oil cylinder,and electric control components.
3. The oil filling machine has the overall structure simple, small footprint, easy operation advantages.
4. The oil filling machine quantitative cup structure, driven by the oil-cylinder piston’s repeated movement which driven by air-cylinder, quantitative filling the oil into bottles, high accuracy, speed filling, double speed filling, slow down after fast, more accurately .
The main technical parameters :
|
semiautomatic oil filling machine |
Power(kw) |
Capacity(b/h) |
Dimension(mm) |
filling capacity |
Weight(kg) |
Material |
Accuracy |
|
|
0.9 |
100-300 |
600*598*1500 |
100-1000/500-2000/1000-5000ml |
90 |
stainless steel |
0.4%
|
