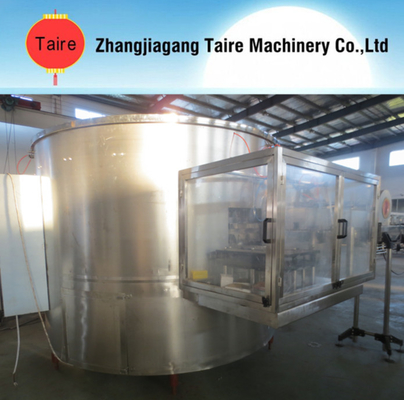

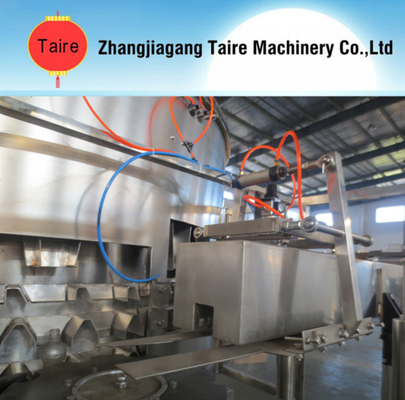

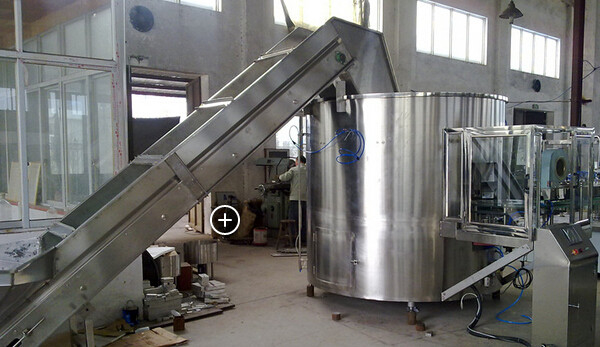

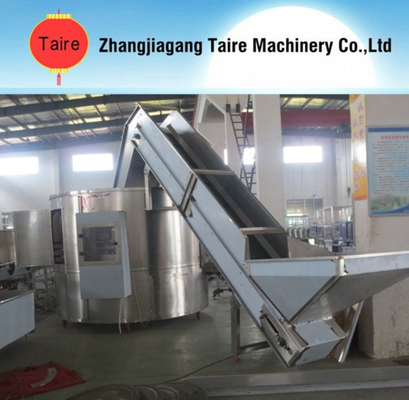

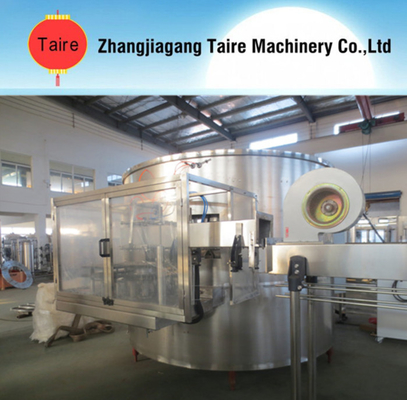

automatic PET bottle unscramblE

automatic PET bottle unscramblE

    • automatic PET bottle unscramblE
    • automatic PET bottle unscramblE
    • automatic PET bottle unscramblE
    • automatic PET bottle unscramblE
    • automatic PET bottle unscramblE
  • automatic PET bottle unscramblE

    Product Details:

    Place of Origin: Jiangsu,China
    Brand Name: taire
    Certification: CE,ISO,SGS
    Model Number: LP-12

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: wooded case packaging suit for long time transport ,according to customers requirement
    Delivery Time: 20 days after receive order
    Payment Terms: TT/LC/Western Union
    Supply Ability: 30 sets per month
    Contact Now
    Detailed Product Description
    Driven Type: Electric Voltage: 380V 3phrase/ 220V 1phrase
    Power: 1.5kw Automatic Grade: Automatic
    Condition: New Full Automatic Control: PLC
    Dimension(L*W*H): 3*1.4*2.0m Weight: 2t
    Material: SUS304 Warranty: Lifetime
    Type: Filling Machine Packaging Type: Bottles

    Specification

    1,Model:LP12-LP30
    2,LP bottle unscrambler
    3,Bottle type: Diameter: 50-90,Height: 150-290
    4,CE, ISO certification




    Characteristic:

    1) Suitable for unscrambling disordered polyester bottles
    2) Aligns bottles and discharges them by vacuum conveyor
    3) Automatic
    4) High speed operation ;
    5) Easy to combine with all kinds of fillers or filling production lines.



    Machine features:

    1) Torque limit part is designed for the main motor reducer so as to protect the machinery if malfunctions occur
    2) Two put-casts in one cycle ensure that every work location should be with one bottle, which enhances bottle output efficiency
    3) The bottles are neck locked through the air conveyor so as to avoid overturn in delivery
    4) Dilapidated bottles will be eliminated by a special device
    5) A lock detector is equipped for alarming; when locked, the machine will automatically stop
    6) A photoelectric switch is set for starting when there is no bottle and stopping when there are bottles
    7) An oil pump will readily fill up the gears, bearings and the cams
    8) Maintenance doors and mould replacement door provided



    Main technical parameters:

    Bottle Unscrambler

    Model

    LP-12

    LP-14

    LP-16

    LP-18

    LP-21

    LP-24

    LP-30

    Type

    Automatic

    Automatic

    Automatic

    Automatic

    Automatic

    Automatic

    Automatic

    Output(BPH)

    6000

    8000

    10000-12000

    20000

    24000

    30000

    33000

    PLC sys.

    Siemens

    Frequency conv.

    Mitsubishi

    Electric sensor

    Omron

    Relay

    Siemens

    Air sys.

    Smc/festo

    Main power

    1.5kw

    1.5kw

    1.5kw

    3kw

    3kw

    3.7kw

    3.7kw

    Size DxH(mm)

    1700x2000

    1800x2000

    2240*2200

    2640x2300

    3020x2650

    3400x2650

    3800x2650

    weight

    2T

    2.8T

    3.5T

    4T

    4.5T

    5T

    5.5T



    Why our machine is better than other similar machines



    1. Small profits and quick returns is our business policy, so the water bottling line is worth every cent.

    2. We focus on advanced supply chain management, which can ensure the raw materials are with

    good quality and competitive price.

    3. Workers, engineers and boss of our company have spent more than 10 years in beverage

    machinery industry,so they have rich experience to provide Turn Key project Service.

    4. There are several engineers available to oversea service. As long as our customers need them,

    they can leave for your country as soon as possible, our principle to let our production line always runsnormally.

    5. We can update the production status for our customer once per week, our target is to let our

    customer receive goods on time.







    About our company



    We can provide beverage filling line as below:



    1).Complete mineral & pure water production line



    2).Complete fruit juice production line



    3).Complete soft drink production line



    4).Gallons water production line



    5). Beer filling & packaging line



    We strictly manufacture and manage according to IOS9001 System.And we sincerely welcome customers all over the world visit our company,or visit our website.









    After-sale servic



    1. 1 year quality warranty and supply spare parts at low cost for life span after sale. We keep the original drawings of spare parts, so it can match with the rest part of machine.



    2. 24 hours/365 days online technical service.



    3. Training offered









    Welcome to check our complete water bottling line



    For any further information about it,please contact us without hesitation,we will reply to you asap.Thank you.
