Machine Features:
1.Stable performance with advanced PLC.

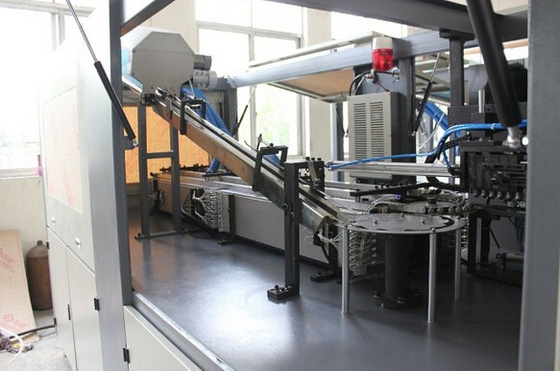

2.Conveying preforms automatically with conveyor.
3.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
4.High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area and eternal temperature in the preheater with an automatic thermostatic apparatus.
5.High safeties with security automatic-locking apparatus in each mechanical action,which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
6.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
7.Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
8.Strong clamping force with high pressure lock the mold.
9.Two ways of operating: automatic and manual.
10.Safe,reliable and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
11.Low cost,high efficiency,easy operation,easy maintenance,etc,with automatic technological process.
12.Contamination is avoided for the bottle body.
13.Ideal effect of the chilling with the chilling system.
14.Easy installation and starting.
15.Low rejection rate:less than 0.2 percent.Machine
The main technical parameters:
|
Technical parameters
|
YD-900-22-Cavity
|
|
Clamping force
|
50t
|
|
Clamping stroke
|
350mm
|
|
Max.stretching stroke
|
420mm
|
|
Bottle moving stroke
|
0-50mm
|
|
The cavity number
|
2 Cavity
|
|
Theoretical output
|
1-6.0L, 900-1500BPH
|
|
Max.Mould thicknes
|
300MM
|
|
Mould plate size
|
630*630MM
|
|
Max air compressor
|
3.2M3/min 3.0Mpa
|
|
Min air compressor
|
1.6M3/min 1.0Mpa
|
|
Voltage standard
|
380v/3HP/50Hz
|
|
Heating area
|
2Sections
|
|
total power
|
50kw
|
|
Container volume
|
1-6.0L
|
|
Neck diameter range
|
38-60mm
|
|
Container height
|
400mm
|
|
Low air compressor
|
8-10bar
|
|
High air compressor
|
30-40bar
|
|
Blow molding machine
|
350*180*220cm
|
|
Perform autoloader
|
250*220*220cm
|
|
Net waight
|
3.5t
|
Why our machine is better than other similar machines
1. Small profits and quick returns is our business policy, so the water bottling line is worth every cent.
2. We focus on advanced supply chain management, which can ensure the raw materials are with
good quality and competitive price.
3. Workers, engineers and boss of our company have spent more than 10 years in beverage
machinery industry,so they have rich experience to provide Turn Key project Service.
4. There are several engineers available to oversea service. As long as our customers need them,
they can leave for your country as soon as possible, our principle to let our production line always runsnormally.
5. We can update the production status for our customer once per week, our target is to let our
customer receive goods on time.
About our company
We can provide beverage filling line as below:
1).Complete mineral & pure water production line
2).Complete fruit juice production line
3).Complete soft drink production line
4).Gallons water production line
5). Beer filling & packaging line
We strictly manufacture and manage according to IOS9001 System.And we sincerely welcome customers all over the world visit our company,or visit our website.
After-sale servic
1. 1 year quality warranty and supply spare parts at low cost for life span after sale. We keep the original drawings of spare parts, so it can match with the rest part of machine.
2. 24 hours/365 days online technical service.
3. Training offered
Welcome to check our complete water bottling line
For any further information about it,please contact us without hesitation,we will reply to you asap.Thank you.
