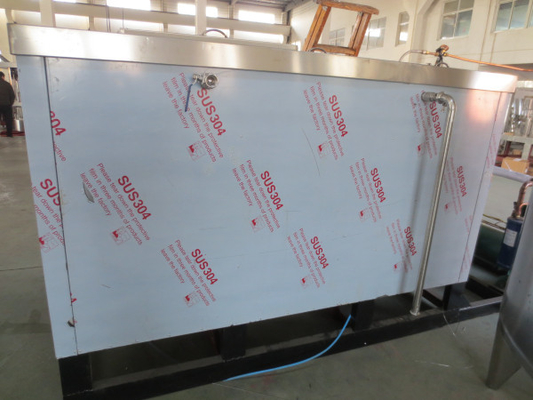

cold drink tank and refrigerator :
1.automatic control system
2.easy operation
3.high efficiency
Charactistic:
The cold drink water tank produces cooled water with mechanical refrigeration.It is suitable for industrial and mineral enterprises, offices, hotels, inns, cold drink rooms and so on to make cold drink, sweet-sour plum juice and others.
It is a set of necessary equipment of making soda water and soda wine.

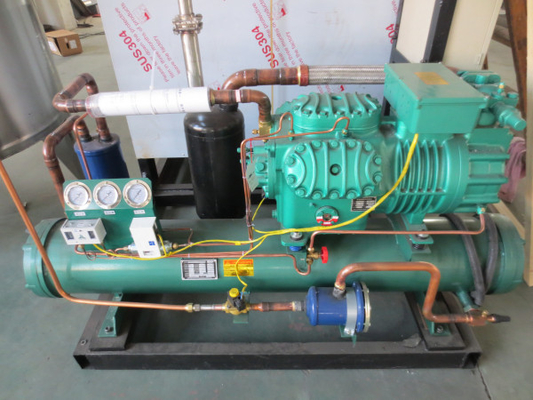

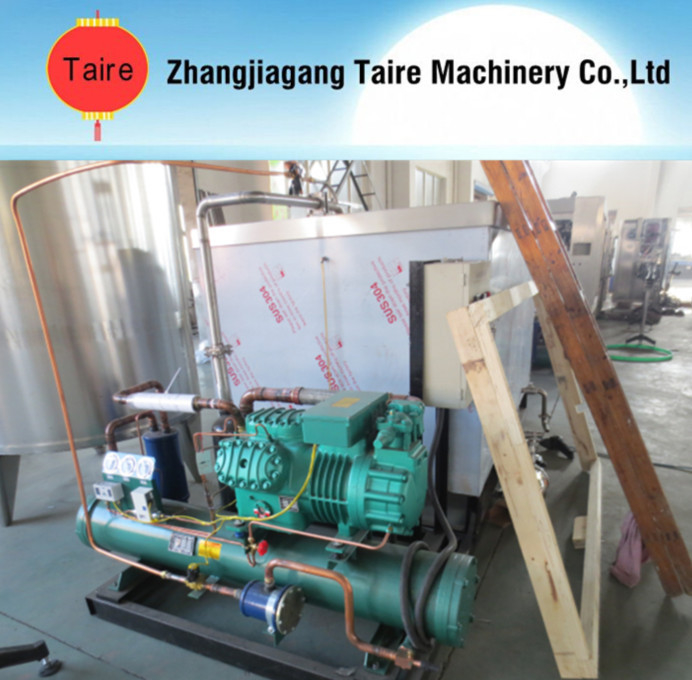

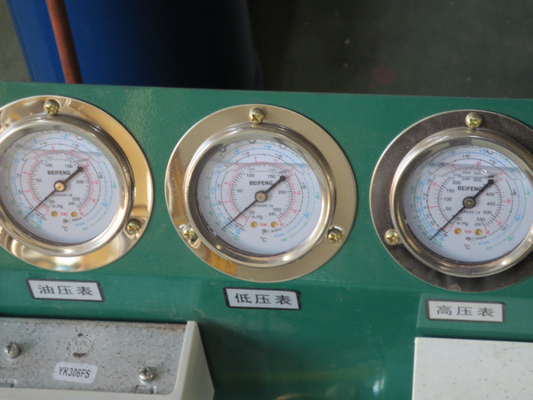

The cold drink water tank adopts freon compressor unit, uses F-12 as refrigerant.Besides, it is equipped with pressure relay and temperature regulator to carry out automatic control.Its operation is safe and convenient and its structure is simple and reasonable.
Refrigeration work carries out the second theorem of thermodynamics, that is quantity of heat can not transfer to high temperature materials from low temperature materials itself., the refrigerant wants to exchange into high-pressure liquid from low pressure steam, it must consume some electric energy or mechanical energy.The compressor can carry out the energy transformation to make the refrigerant change into high pressure liquid from the low pressure steam circularly and continuously keep and get low temperature.
The compressor starts work, the steam in the low pressure pipeline is absorbed into it and become high pressure steam by a compressor., and it is cooled and become high pressure liquid by a condenser, the high pressure liquid enters the storage device and the filter, enters a expansion valve to throttle and reduce pressure to make the refrigerant evaporate and absorb heat, then it is absorbed by a compressor, form refrigeration circulation processing.
Main technical parameters:
|
Model
|
LY-1600
|
LY-2000
|
LY-3000
|
|
Compressor model
|
2F6.3-S
|
JZS-2F-10
|
JZS-4F-10
|
|
Tank volume
|
1.6
|
2
|
3
|
|
Vapouring area
|
7.2
|
11
|
20
|
|
Refrigerating capacity(kj/h)
|
33440
|
58520
|
117040
|
|
Water output(kg/h)
|
400-800
|
1000-1500
|
1500-2000
|
|
Output water temperature(C)
|
0-5
|
0-5
|
0-5
|
|
Power(kw)
|
6
|
11
|
22
|
|
Overall dimension(mm)
|
2200*1200*1800
|
2200*1200*1800
|
2200*1250*1800
|
|
Weight(kg)
|
1050
|
1230
|
1250
|
Why our machine is better than other similar machines
1. Small profits and quick returns is our business policy, so the water bottling line is worth every cent.
2. We focus on advanced supply chain management, which can ensure the raw materials are with
good quality and competitive price.
3. Workers, engineers and boss of our company have spent more than 10 years in beverage
machinery industry,so they have rich experience to provide Turn Key project Service.
4. There are several engineers available to oversea service. As long as our customers need them,
they can leave for your country as soon as possible, our principle to let our production line always runsnormally.
5. We can update the production status for our customer once per week, our target is to let our
customer receive goods on time.
About our company
We can provide beverage filling line as below:
1).Complete mineral & pure water production line
2).Complete fruit juice production line
3).Complete soft drink production line
4).Gallons water production line
5). Beer filling & packaging line
We strictly manufacture and manage according to IOS9001 System.And we sincerely welcome customers all over the world visit our company,or visit our website.
After-sale servic
1. 1 year quality warranty and supply spare parts at low cost for life span after sale. We keep the original drawings of spare parts, so it can match with the rest part of machine.
2. 24 hours/365 days online technical service.
3. Training offered
Welcome to check our complete water bottling line
For any further information about it,please contact us without hesitation,we will reply to you asap.Thank you.
