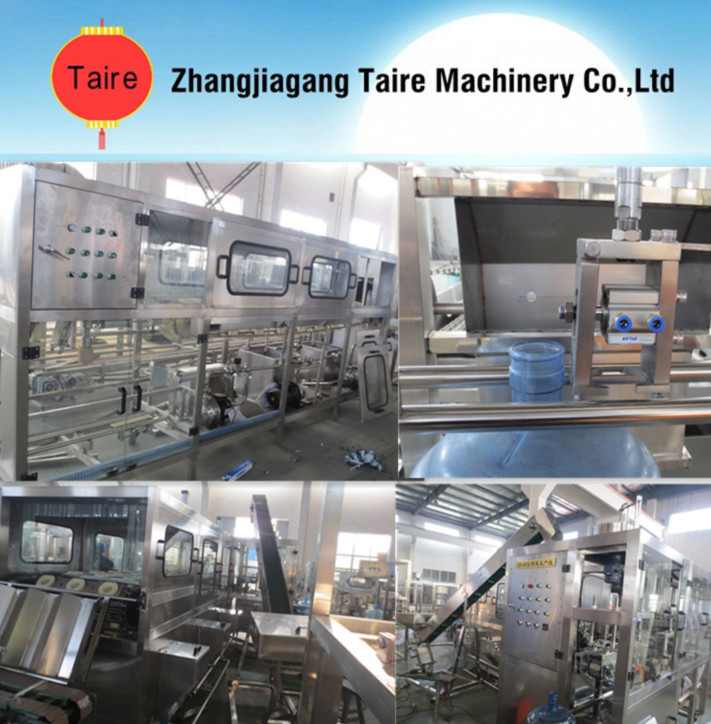

5 gallon purifying filling machine/barrelled water production line
(affordable price and customized product)
Specifications
1, Full aotomatic
2, Easy to operation
3, Low maintenance
4, Save labours
5, Professional services
General description
This filling line specially produces 5 gallons bottled drinking water,whose types(b/h)are:100 type,200type,300type,450 type,600type,900 type,1200type and 2000 type. lt integrates bottle washer,filler and sealer into one unit,in order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and leaching are used in bottle washer,Washing solution can boused circularly.The sealer can seal bottle caps automatically.This line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy,also this line can automatically carry out bottle feeding washing,sterilizing,filling capping,counting and products discharging.It is a new kind of barreled water auto-producing line,which integrates mechanism,electricity and pneumatic technologies together.
Features
1-Adaptability is wide: Because all parts have a height adjust device.
2-Production capacity can be adjusted continuously: using a frequency inv erter to control the speed. So it works more reliable.
3-This machine has a complete set of reliable protection system to protect the machine itself and the operator.
4-Compare with similar type of machine, it has following performances:
5-More compact in structure, more beautiful in appearance.
6-The structure of bottle rinsing clamp is more delicate.
7-Screw head uses magnetic parts.
processing flow
water treatment system-----> decapper -----> auto internal brusher ----> auto outside brusher
-----> barrel lifting ----> barrel washing filling capping machine---->film shrinking for barrel neck
---->light checking ----> inkjet code printer
Main technical parameters:
|
Model
|
Capacity production
|
power
|
Overall dimension
|
|
QGF-120
|
120b/h
|
2.8kw
|
2500*900*1445
|
|
QGF-200
|
200 b/h
|
3.3 kw
|
3000*1350*1560
|
|
QGF-300
|
300 b/h
|
4.5 kw
|
3500*1400*1560
|
|
QGF-600
|
600 b/h
|
5.7 kw
|
4500*3000*1560
|
|
QGF-900
|
900 b/h
|
6.5 kw
|
5100*3600*1560
|
|
QGF-1200
|
1200 b/h
|
8 kw
|
5100*1400*1560
|
