water treatment system-----> decapper -----> auto internal brusher ----> auto outside brusher
-----> barrel lifting ----> barrel washing filling capping machine---->film shrinking for barrel neck
---->light checking ----> inkjet code printer
Main technical parameters:
|
Model
|
Capacity production
|
power
|
Overall dimension
|
|
QGF-120
|
120b/h
|
2.8kw
|
2500*900*1445
|
|
QGF-200
|
200 b/h
|
3.3 kw
|
3000*1350*1560
|
|
QGF-300
|
300 b/h
|
4.5 kw
|
3500*1400*1560
|
|
QGF-600
|
600 b/h
|
5.7 kw
|
4500*3000*1560
|
|
QGF-900
|
900 b/h
|
6.5 kw
|
5100*3600*1560
|
|
QGF-1200
|
1200 b/h
|
8 kw
|
5100*1400*1560
|

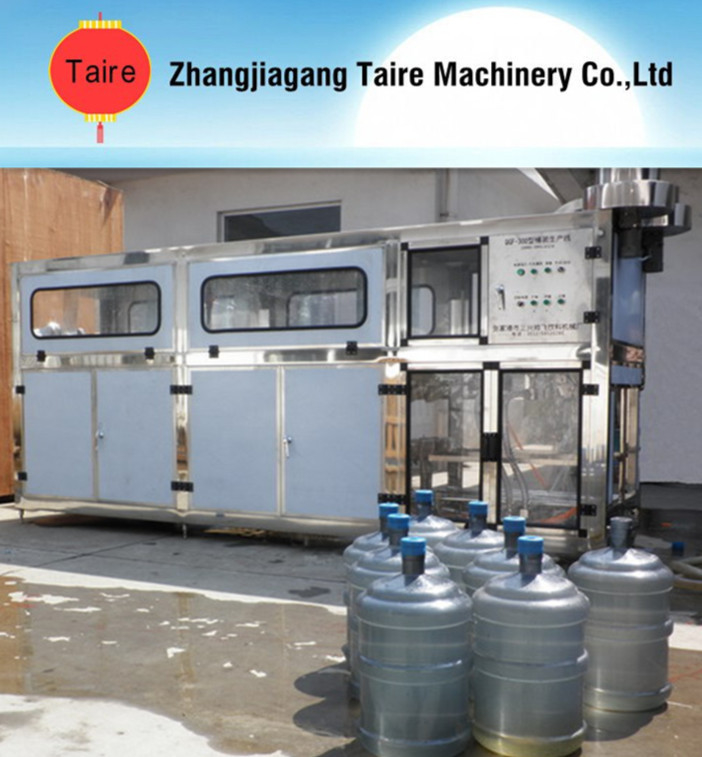

Functions ; 5 gallon water filling line is used for 5gallon bottle water
productdion , such as mineral water ,pure water , drinking water ,cleaned natural water for
drinking and so on , this water production line high autoamtically and very popular in the water
plant from all over the world .
Main equipment items of the barrel production line :
The whole line is composed by the following
Automatic two heads de-capping machine
Automatic rotate barrel outside brushing machine
Automatic barrel loading system
Automatic barrel washing machine
Automatic rotate filling and capping machine 2-in-1
Automatic cap washing and loading system
Sleeve label machine with shrinking tunnel
Automatic barrel palletizer machine
Conveyor system
Take note:the detail machines according to the user’s requirements .
Filling tecnical description:
filling technics and structure is designed and innovated by ourselves. It adopts
large fluent filling and fix quantify filling . filling valve is SUS fine casting process,
it has airproof ring to avoid attrition of the metal .it is control by cylinder , and it is
stabilization . in the filling process, barrel after washing transport to covey barrel screw.
The covey barrel screw apart the barrel equality to star-wheel. The star-wheel lead the
barrel to filling system. When the filling cylinder meet journey switch, cylinder moves
down to open filling valve. Filling valve start to fill. After filling , cylinder meet with journey
switch again and move up. Filling valve close. The barrel after filling export by star-wheel.
And transport to capping machine by chains. Filling parts has 8 filling valves to satisfy the speed of the machine . at the same time , liquid position is nicety because of controlling by journey switch.
Main configuration for the whole water production line :
The whole line is controlled by SS electrical carbinate with touch screen ,PLC and transducer
brand is Japan Mitsubishi .water pump adopts the most famous brand in China named
NANFANG ,Motor reducer adopts the joint venture brand .penumatic system adopts AIRTAC.
