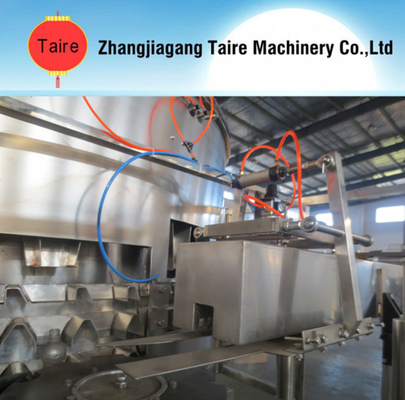

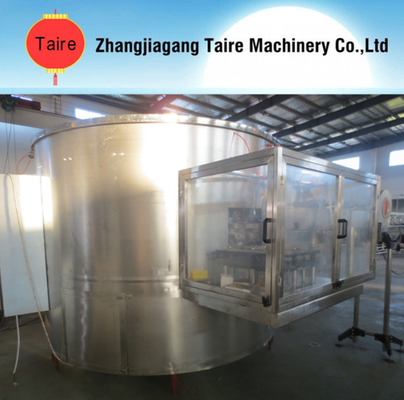

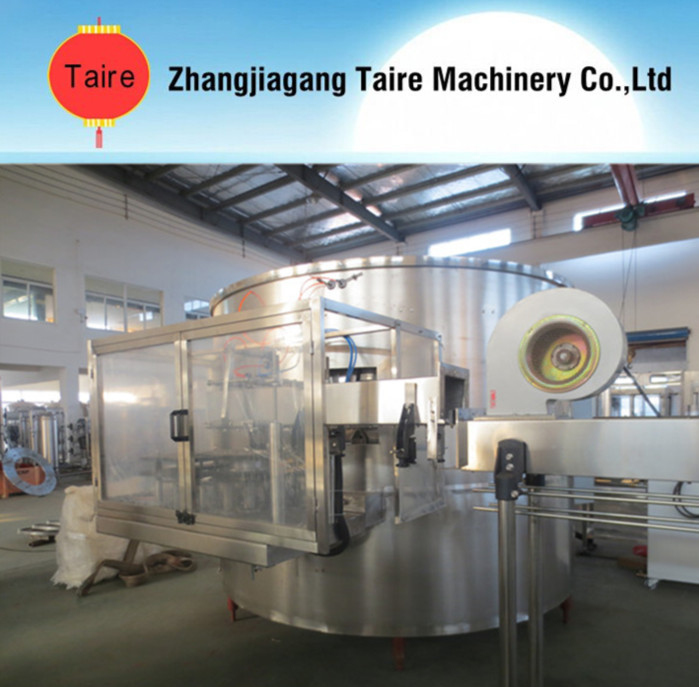

bottle unscrambler machine

bottle unscrambler machine

    • bottle unscrambler machine
    • bottle unscrambler machine
    • bottle unscrambler machine
    • bottle unscrambler machine
    • bottle unscrambler machine

    Product Details:

    Place of Origin: Jiangsu,China
    Brand Name: taire
    Certification: CE,ISO,SGS
    Model Number: LP-12

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: wooded case packaging suit for long time transport ,according to customers requirement
    Delivery Time: 20 days after receive order
    Payment Terms: TT/LC/Western Union
    Supply Ability: 30 sets per month
    Contact Now
    Detailed Product Description
    Driven Type: Electric Voltage: 380V 3phrase/ 220V 1phrase
    Power: 1.5kw Automatic Grade: Automatic
    Condition: New Full Automatic Control: PLC
    Dimension(L*W*H): 3*1.4*2.0m Weight: 2t
    Material: SUS304 Warranty: Lifetime
    Type: Filling Machine Packaging Type: Bottles

    Specifications





    1,Model:LP12-LP30
    2,LP bottle unscrambler
    3,Bottle type: Diameter: 50-90,Height: 150-290
    4,CE, ISO certification




    Characteristic:

    1) Suitable for unscrambling disordered polyester bottles
    2) Aligns bottles and discharges them by vacuum conveyor
    3) Automatic
    4) High speed operation ;
    5) Easy to combine with all kinds of fillers or filling production lines.



    Machine features:

    1) Torque limit part is designed for the main motor reducer so as to protect the machinery if malfunctions occur
    2) Two put-casts in one cycle ensure that every work location should be with one bottle, which enhances bottle output efficiency
    3) The bottles are neck locked through the air conveyor so as to avoid overturn in delivery
    4) Dilapidated bottles will be eliminated by a special device
    5) A lock detector is equipped for alarming; when locked, the machine will automatically stop
    6) A photoelectric switch is set for starting when there is no bottle and stopping when there are bottles
    7) An oil pump will readily fill up the gears, bearings and the cams
    8) Maintenance doors and mould replacement door provided



    Main technical parameters:

    Bottle Unscrambler

    Model

    LP-12

    LP-14

    LP-16

    LP-18

    LP-21

    LP-24

    LP-30

    Type

    Automatic

    Automatic

    Automatic

    Automatic

    Automatic

    Automatic

    Automatic

    Output(BPH)

    6000

    8000

    10000-12000

    20000

    24000

    30000

    33000

    PLC sys.

    Siemens

    Frequency conv.

    Mitsubishi

    Electric sensor

    Omron

    Relay

    Siemens

    Air sys.

    Smc/festo

    Main power

    1.5kw

    1.5kw

    1.5kw

    3kw

    3kw

    3.7kw

    3.7kw

    Size DxH(mm)

    1700x2000

    1800x2000

    2240*2200

    2640x2300

    3020x2650

    3400x2650

    3800x2650

    weight

    2T

    2.8T

    3.5T

    4T

    4.5T

    5T

    5.5T
