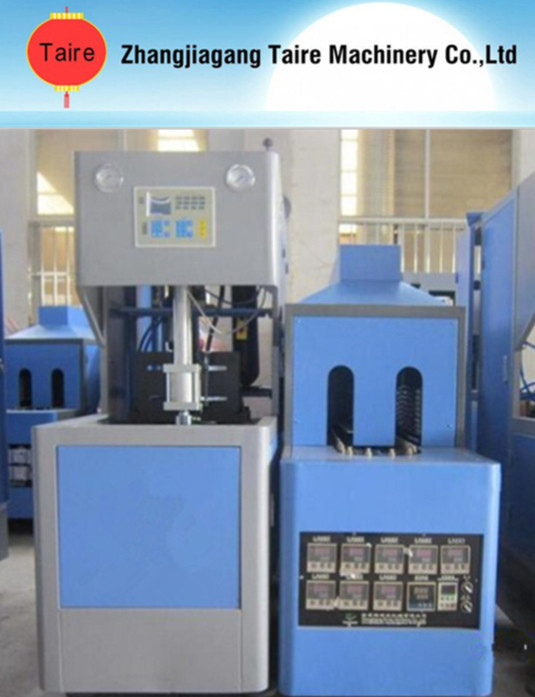

YD - 5 semi-automatic blow moulding machine

YD - 5 semi-automatic blow moulding machine

    • YD - 5 semi-automatic blow moulding machine
    • YD - 5 semi-automatic blow moulding machine
  • YD - 5 semi-automatic blow moulding machine

    Product Details:

    Place of Origin: China
    Brand Name: Taire
    Certification: ISO/CE
    Model Number: blow moulding machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: wooden case packing wuit for long time transport
    Delivery Time: 30days
    Payment Terms: TT or negotiation
    Supply Ability: 1000 set/year
    Voltage: basis on customer requirement
    Contact Now
    Detailed Product Description
    Material: SUS304 Running: Semi-automatic
    Warranty: Lifetime Power(W): 10kw
    Dimension(L*W*H): 210*73*190cm

    Specifications

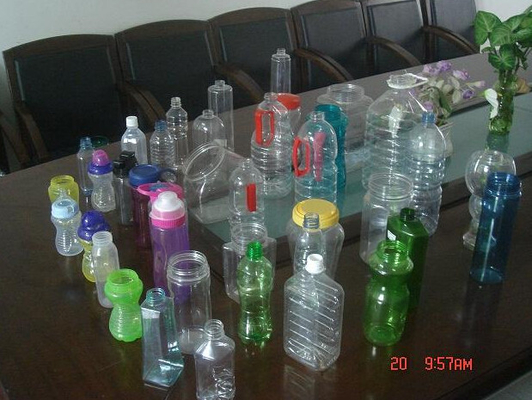

    1.For 3-5 gallon PET bottles

    2.FESTO components

    3.Inner heating

    4.CE, ISO certification



    Brief introduction:

    semi-automatic blow moulding machine, has been improved on the basis of its pre-model.It is designed according to CE standard, by adding safe door, the machine is safer and easier to operate, also the machine looks neat and nice.



    The main technical parameters:

    General information

    YD—5FOR 5GALLON

    Clamping force

    22T

    Clamping stroke

    450mm

    Max.stretching stroke

    660mm

    Number of cavities

    7-22l 1 cavity

    Theorectical output

    7-22l 1 cavity:90bph

    Max.mould thickness

    400mm

    Mould plate size

    600*640mm

    Voltage standard

    380v/3hp/50hz

    Total power

    10-25kw

    Min air compressor

    1.6m/min 3.0mpa

    Blow molding machine

    210*73*190cm

    Pre-heater

    262*66*160cm

    Net weight

    2.5t

    Container volume

    7-22l

    Neck diameter range

    50-330mm

    Container diamerer

    400mm

    Container height

    640mm
