Specifications:
1. For gas drink, as coca cola
2. Suit for 300ml-500ml bottle
3. Full automatic 3 in 1 machine
4. CE, ISO certification
Machine advantage:
1. The DCGF carbonated drink filling machine For gas drink, as coca cola
2. It is Suit for 300ml-2000ml bottle

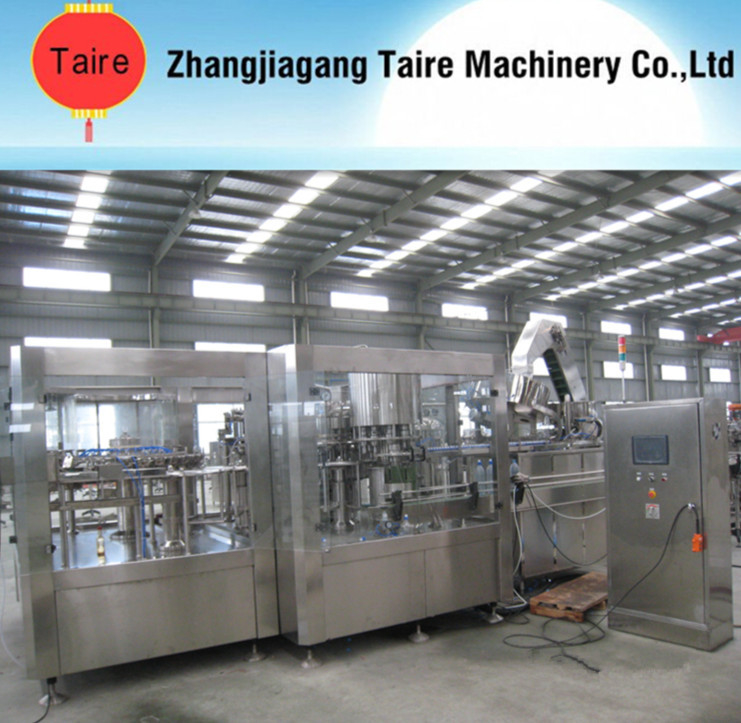

3. It is washing filling capping 3 in 1 machine full automatic
4. Our company have passed CE, ISO certification
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Usage:

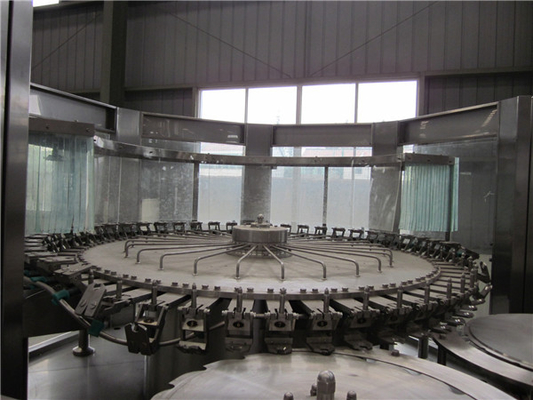

Rinser
l. The rotary wheel is a fully stainless steel welded structure.
2. The machine applies unique overturning bottle clamp, which is an innovation of our company.
This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused
by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp
is hygienic and durable.
3. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part
of bottle inner wall, and also saves rinsing water.
4. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
5. The rinser is driven by driving system positioned inside machine frame via gear transmission.

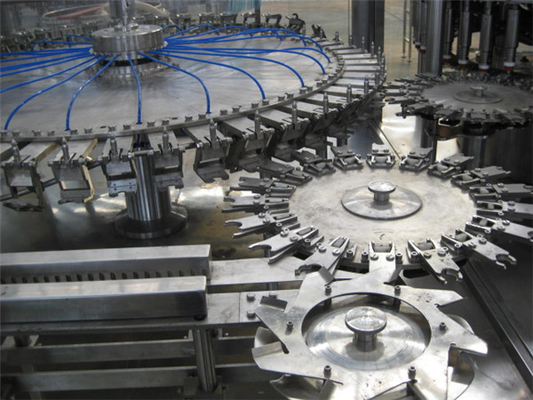

6. Transfer starwheel
7. Made of stainless steel of superior quality.

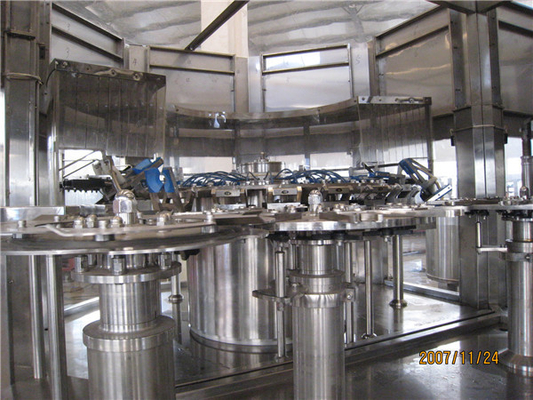

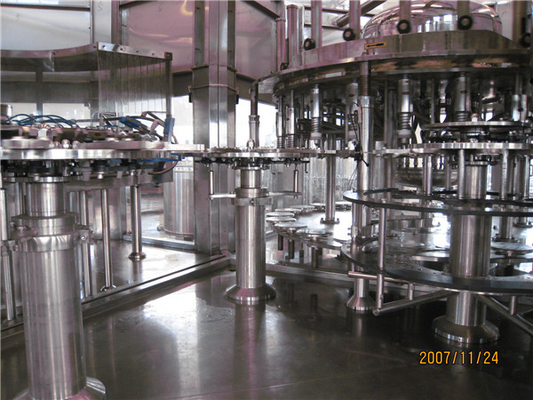

Filler
l. Rotary wheel fully made of stainless steel SUS 304.
2. Gravity filling method.
3. Filling valves are made of SUS316L.
4. Filling valves are reasonably structured with accurate filling.
5. Bottles go up and down in the function of cam through elevator, to process filling with contact
to bottle-mouth.
6. Level of cylinder is controlled with float-ball.
7. Filler is driven through gears inside the machine frame.
8. Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.
Capper
Capper is the machine with highest precision, influence very much with the stability and reliability of the
filling monoblock. Our capper features as follows:
l. The equipment is designed with the support of experts from school of engineering and mechanical in
Shanghai Jiao Tong University, and uses the technology of Arol from Italy, most advance technology in the
world, developed with the experience of asepsis filling machine. For example, I) extruding wheel (main part
to control the stability when sealing), uses the technology of Arol. Kinematical and kinetic design of the wheel
by experts improves the stability and credibility of the equipment. II) Sealing faucet (main part to control the
credibility of sealing), is improved by experts with the design of alnico. Besides the magnetic contortion
variation device, there is variation dial which makes variation more easily. The benefit of this design is not
only it can set the contortion, but also it makes contortion more precise and credible, and reduces inferior.
Why our machine is better than other similar machines
1. Small profits and quick returns is our business policy, so the water bottling line is worth every cent.
2. We focus on advanced supply chain management, which can ensure the raw materials are with
good quality and competitive price.
3. Workers, engineers and boss of our company have spent more than 10 years in beverage
machinery industry,so they have rich experience to provide Turn Key project Service.
4. There are several engineers available to oversea service. As long as our customers need them,
they can leave for your country as soon as possible, our principle to let our production line always runsnormally.
5. We can update the production status for our customer once per week, our target is to let our
customer receive goods on time.
About our company
We can provide beverage filling line as below:
1).Complete mineral & pure water production line
2).Complete fruit juice production line
3).Complete soft drink production line
4).Gallons water production line
5). Beer filling & packaging line
We strictly manufacture and manage according to IOS9001 System.And we sincerely welcome customers all over the world visit our company,or visit our website.
After-sale servic
1. 1 year quality warranty and supply spare parts at low cost for life span after sale. We keep the original drawings of spare parts, so it can match with the rest part of machine.
2. 24 hours/365 days online technical service.
3. Training offered
