Specifications:
1. For gas drink, as coca cola
2. Suit for 300ml-500ml bottle

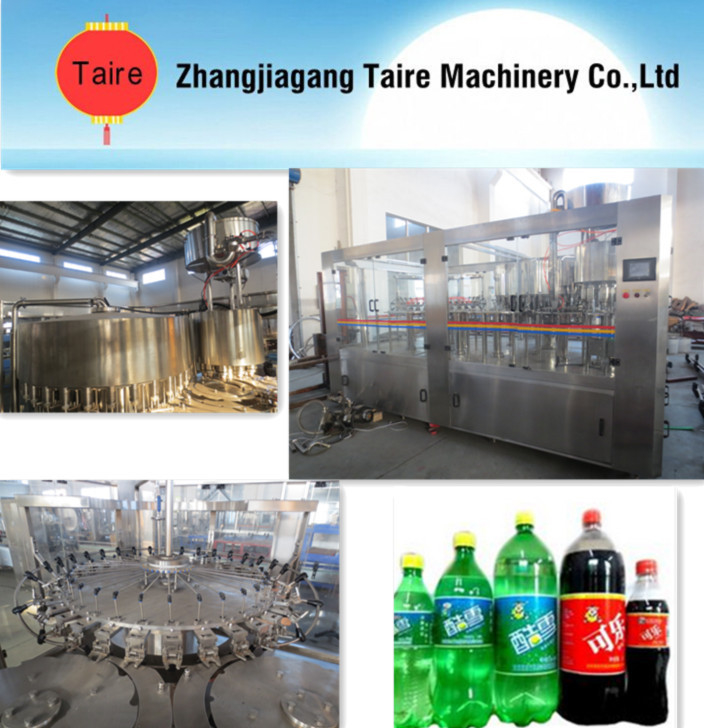

3. Full automatic 3 in 1 machine
4. CE, ISO certification
Usage:

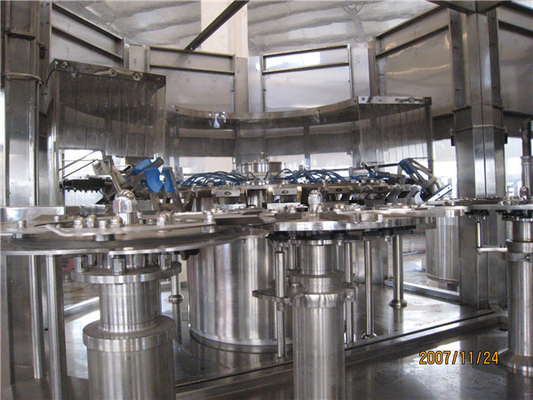

Rinser
l. The rotary wheel is a fully stainless steel welded structure.
2. The machine applies unique overturning bottle clamp, which is an innovation of our company.
This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused
by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp
is hygienic and durable.
3. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part
of bottle inner wall, and also saves rinsing water.
4. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
5. The rinser is driven by driving system positioned inside machine frame via gear transmission.
6. Transfer starwheel
7. Made of stainless steel of superior quality.

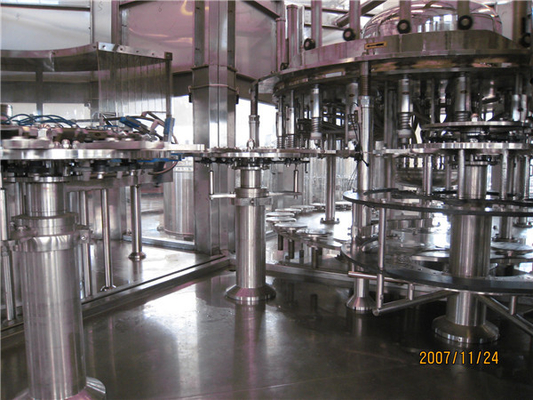

Filler
l. Rotary wheel fully made of stainless steel SUS 304.
2. Gravity filling method.
3. Filling valves are made of SUS316L.
4. Filling valves are reasonably structured with accurate filling.
5. Bottles go up and down in the function of cam through elevator, to process filling with contact
to bottle-mouth.
6. Level of cylinder is controlled with float-ball.
7. Filler is driven through gears inside the machine frame.
8. Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.
Capper
Capper is the machine with highest precision, influence very much with the stability and reliability of the
filling monoblock. Our capper features as follows:
l. The equipment is designed with the support of experts from school of engineering and mechanical in
Shanghai Jiao Tong University, and uses the technology of Arol from Italy, most advance technology in the
world, developed with the experience of asepsis filling machine. For example, I) extruding wheel (main part
to control the stability when sealing), uses the technology of Arol. Kinematical and kinetic design of the wheel
by experts improves the stability and credibility of the equipment. II) Sealing faucet (main part to control the
credibility of sealing), is improved by experts with the design of alnico. Besides the magnetic contortion
variation device, there is variation dial which makes variation more easily. The benefit of this design is not
only it can set the contortion, but also it makes contortion more precise and credible, and reduces inferior.
