Specifications:
1, Suit for filling carbonated drink, as Cola
2,Capacity 1000-8000bph
3,Bottle type: PET, glass, pop top can
4,CE, ISO
Machine advantage:
1. smooth working
2. reliable and safe operation
3. convenient maintenance
4. high-efficiency production
Usage:

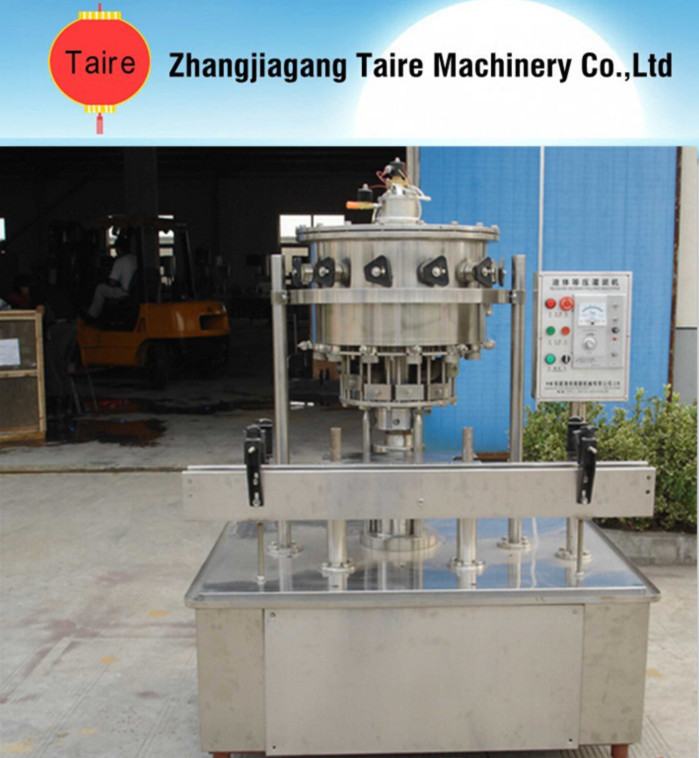

This DG-8 filling machine suit for small to middle beverage factory to produce Black tea, green tea etc.
Characteristic:

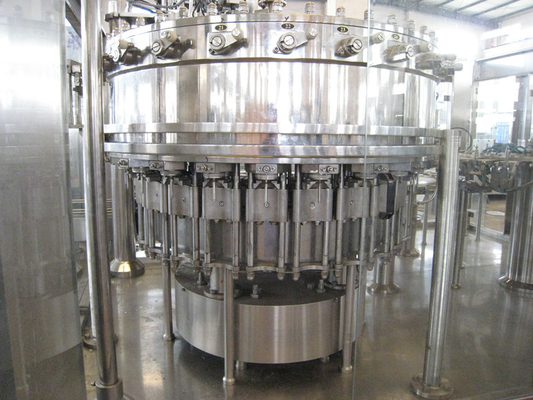

1 DGseries balanced pressure filler is a kind of advanced level filling equipment.
2.This machine is researched, improved and made according to the filling technique requirement of can-drink of our country on the base of introducing, digesting and absorbing foreign advanced technology.
3.It is mainly used in filling soda drink, such as cola, light sparkling wine, gas containing mineral water and so on.
4.It has advantages of advanced structure, smooth working, reliable, safe operation, convenient maintenance, high-efficiency production and etc.
5.It is an ideal filling equipment ofmedium-small scale drink factory.
Main technical parameters:
|
Model
|
DG-8
|
DG-12
|
DG-18
|
DG-24
|
DG-32
|
|
Production capacity
|
1000-2000H/B
|
1000-3000 H/B
|
2500-4600 H/B
|
2500-6000 H/B
|
3000-8000 H/B
|
|
Botlle/standard
|
Glass bottle /PVC bottle / pop-top can
|
|
Filling pressure
|
0.2-0.3Mpa
|
|
Filling temperature
|
2-6 c
|
|
power
|
0.75kw
|
1.1 kw
|
1.5 kw
|
1.5 kw
|
2.2 kw
|
|
Overall dimensions
|
1000x900x1800mm
|
1100x1050x1800 mm
|
1400x1300x1800 mm
|
1600x1540x1800 mm
|
1900x1500x2000 mm
|
|
weight
|
1000kg
|
1600 kg
|
2100 kg
|
2700 kg
|
3500 kg
|
