Specifications:
1.no Carbonated soft drinks filling machine
2. CE SGS
3. Credible price & quality
4. Provide engineers to install
Machine advantage:
1. The CGF Gas free drink filling machine For gas drink, as coca cola
2. It is Suit for 300ml-2000ml bottle
3. It is washing filling capping 3 in 1 machine full automatic
4. Our company have passed CE, ISO certification
Usage:
The series equipment is used for pet bottled mineral water, pure water, fruit juice alcoholic drink not containing gas, such as production, in rushed bottle, filling and capping machine.
Product Description
1. The washing, filling and capping 3 kinds of jobs will be finished just by this one machine.
2. It is very convenient to change diverse sizes of bottles by means of advanced bottle conveying technology--bottleneck clamping and bottle suspending technology.
3. Advanced programmable PLC is equipped to control the main machine.
4. Main electronic components are all from famous international enterprises, like Siemens, Mitsubishi.
5. All spare parts that may touch with water are made from high-quality stainless steel.
The main technical parameters:
|

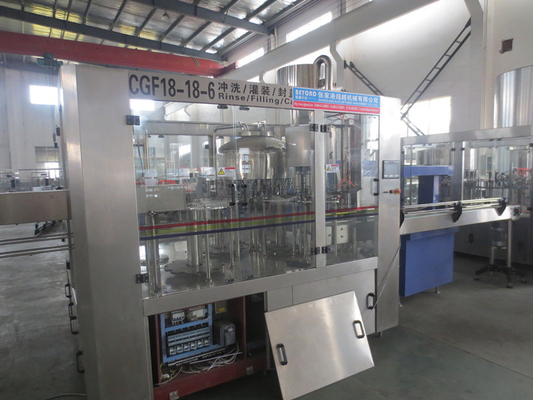

Model:
|
CGF 14/12/5
|
CGF 18/18/6
|
CGF 24/24/8
|
|
Capacity:500ml(b/h)
|
2000-4000
|
4000-6000
|
8000-10000
|
|
Suitable Bottle:(mm)
|
150-340
|
150-340
|
150-340
|
|
Suitable Cap:
|
φ50-φ90(mm)
|
|
Filling Pressure:
|
0.2-0.3 Mpa
|
|
Power: (kW)
|
3.13
|
3.84
|
4.1
|
|
Filling Temperature:
|
Room Temperature
|
|
Size: L×W×H (mm)
|
2250×1640×2100
|
2430×1800×2100
|
3050×2060×2100
|
|
Total Weight:(kg)
|
2500
|
3000
|
4000
|
|
Quotation(USD)
|
18300
|
23200
|
30500
|
