Specifications:
1.no Carbonated soft drinks filling machine
2. CE SGS
3. Credible price & quality
4. Provide engineers to install
Application----- Mineral Water Filling Machine
This series water filling machine is used in the production of non-carbonated drink ,such as mineral water and purified water,etc.Washing, filling and capping are integrated into one machine.
Features----- Mineral Water Filling Machine
(1) The suspending bottle-neck clamping design make the bottle stable during the high-speedmoving. conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.
(2) The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle'sscrew thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.

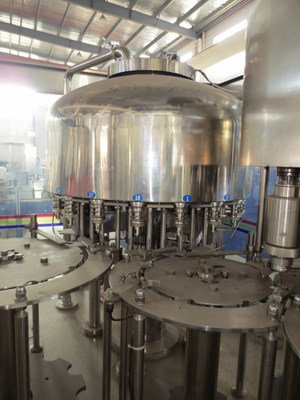

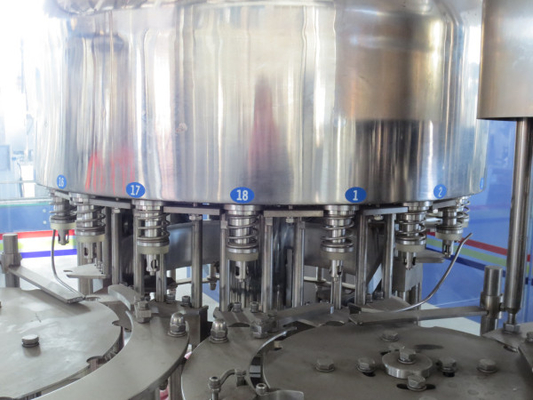

(3) The advanced gravity filling technology used in this machine makes the filling quick, steady and accurate.

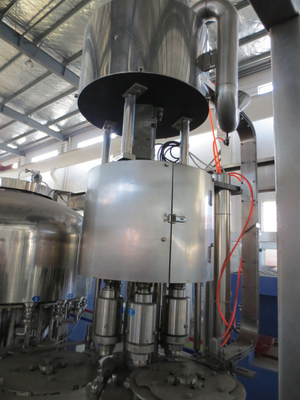

(4) Magnetic torque is used for screw capping, and the power of screw capping can be adjusted steplessly. Capping is reliable and do no harm to the caps.
(5) Advanced technologies, such as human-machine interface touch-screen and PLC program control are adopted in this machine.
(6) All parts that have direct contact with the water are made of high quality stainless steel. The critical electricalcomponents are from famous international companies, such as Mitsubishi, Omron to name a few.
The main technical parameters:
|
Model:
|
CGF 14/12/5
|
CGF 18/18/6
|
CGF 24/24/8
|
|
Capacity:500ml(b/h)
|
2000-4000
|
4000-6000
|
8000-10000
|
|
Suitable Bottle:(mm)
|
150-340
|
150-340
|
150-340
|
|
Suitable Cap:
|
φ50-φ90(mm)
|
|
Filling Pressure:
|
0.2-0.3 Mpa
|
|
Power: (kW)
|
3.13
|
3.84
|
4.1
|
|
Filling Temperature:
|
Room Temperature
|
|
Size: L×W×H (mm)
|
2250×1640×2100
|
2430×1800×2100
|
3050×2060×2100
|
|
Total Weight:(kg)
|
2500
|
3000
|
4000
|
|
Quotation(USD)
|
18300
|
23200
|
30500
|
