Specifications:
1.no Carbonated soft drinks filling machine
2. CE SGS
3. Credible price & quality
4. Provide engineers to install
Products Introduction:

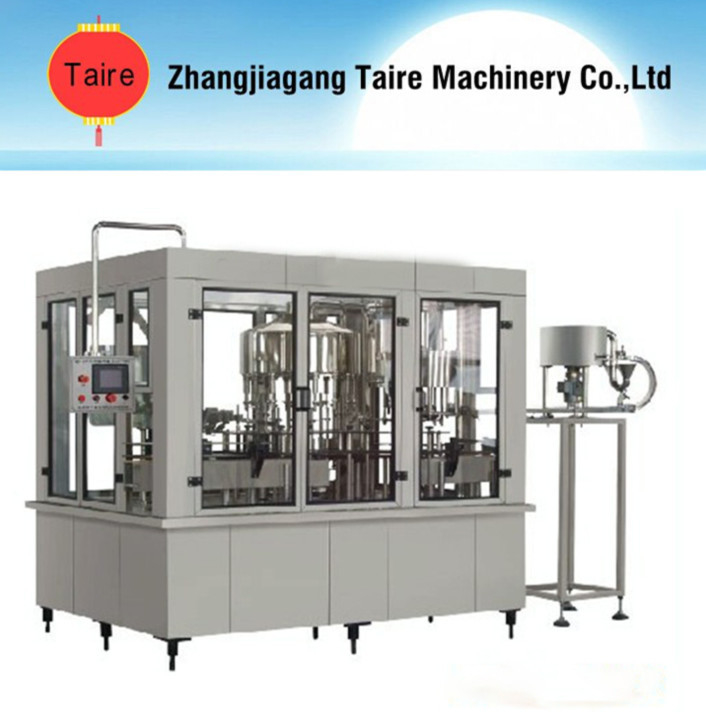

This CGF Washing-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. The CGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

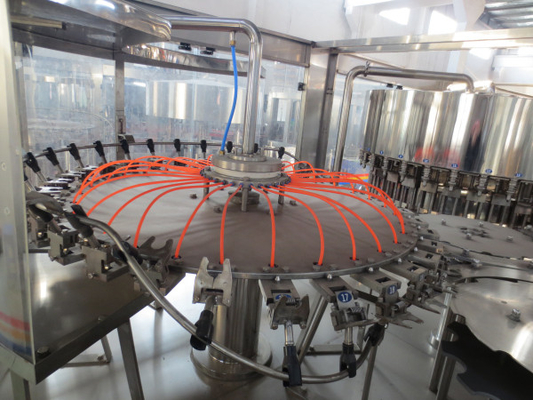

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

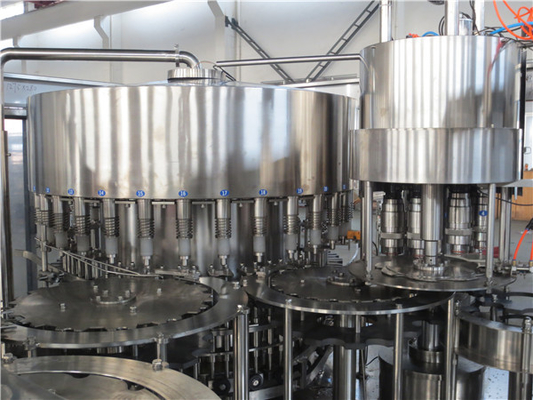

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Product Description
(1)water filling line/liquid filling line includes: Washing-filling-capping 3 in 1 machine, lamp inspection, label shrinking machine, inkjet printer, hot shrink film packer and conveyors. It is a full automatic production line.
(2)The water filling line is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
(3)The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
(4)The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.
(5)The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.
(6)It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.
(7)The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The machine is an idea-preferred equipment for beverage maker.
The main technical parameters:
|
Model:
|
CGF 14/12/5
|
CGF 18/18/6
|
CGF 24/24/8
|
|
Capacity:500ml(b/h)
|
2000-4000
|
4000-6000
|
8000-10000
|
|
Suitable Bottle:(mm)
|
150-340
|
150-340
|
150-340
|
|
Suitable Cap:
|
φ50-φ90(mm)
|
|
Filling Pressure:
|
0.2-0.3 Mpa
|
|
Power: (kW)
|
3.13
|
3.84
|
4.1
|
|
Filling Temperature:
|
Room Temperature
|
|
Size: L×W×H (mm)
|
2250×1640×2100
|
2430×1800×2100
|
3050×2060×2100
|
|
Total Weight:(kg)
|
2500
|
3000
|
4000
|
|
Quotation(USD)
|
18300
|
23200
|
30500
|
Why our machine is better than other similar machines
1. Small profits and quick returns is our business policy, so the water bottling line is worth every cent.
2. We focus on advanced supply chain management, which can ensure the raw materials are with
good quality and competitive price.
3. Workers, engineers and boss of our company have spent more than 10 years in beverage
machinery industry,so they have rich experience to provide Turn Key project Service.
4. There are several engineers available to oversea service. As long as our customers need them,
they can leave for your country as soon as possible, our principle to let our production line always runsnormally.
5. We can update the production status for our customer once per week, our target is to let our
customer receive goods on time.
About our company
We can provide beverage filling line as below:
1).Complete mineral & pure water production line
2).Complete fruit juice production line
3).Complete soft drink production line
4).Gallons water production line
5). Beer filling & packaging line
We strictly manufacture and manage according to IOS9001 System.And we sincerely welcome customers all over the world visit our company,or visit our website.
After-sale servic
1. 1 year quality warranty and supply spare parts at low cost for life span after sale. We keep the original drawings of spare parts, so it can match with the rest part of machine.
2. 24 hours/365 days online technical service.
3. Training offered
