Machine advantage:
1. The RCGF hot drink filling machine For green tea
2. It is Suit for 300ml-2000ml bottle
3. It is washing filling capping 3 in 1 machine full automatic
4. Our company have passed CE, ISO certification
Character:
The material of the bottles can be PET,glass and so on.The functiion of fluent and fast filling action, high filling precision, reliable capping and low material loss makes it effectively prevent secondary polluction of the neck with high automation in the whole process. It can achieve the replacement of different bottles only by exchanging equivalent parts.
Feature:
1.This machine has a compact structure, perfect control system, easy to operate and highly automated.
2.The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.

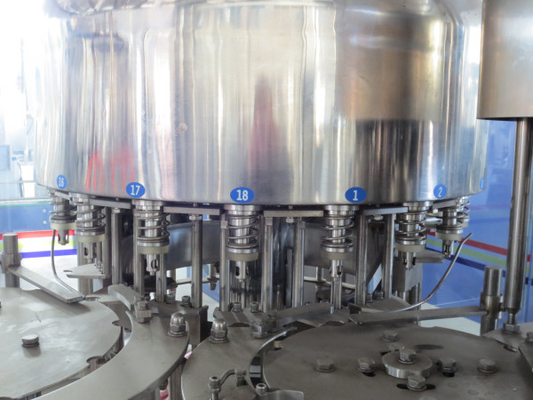

3.By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
4.The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
5.This machine has a high efficient cap arranging system, perfect cap feeding and protection device.
6.Equipped with perfect clean management system to ensure the bottle clean.
7.Only by changing the star-wheel, can realize to fill the changed bottle shape.
8.The machine adopts perfect overload protective device can ensure the operator and machine safe.
9.This machine adopts adjustable frequency converter.
10.The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
11.The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
12.The electric components and pneumatic components are all introduced from world famous brand products.
The main technical parameters:
|
Model:
|
RCGF18-18-6
|
RCGF32-32-10
|
RCGF60-60-15
|
RCGF80-80-18
|
|
Production Capacity(600 ml)(b/h)
|
5000-7000
|
12000-15000
|
25000-28000
|
33000-36000
|
|
Filling Precision
|
1%(liquid Level)
|
|
Polyester Bottle Standard(mm)
|
Bottlediameterφ50-φ110 Height:150-310
|
|
Suitable Cap Shape
|
Plastic Screw Cap
|
|
Water Pressure of Washing bottle(MPa)
|
0.2-0.25
|
|
Power(kW)
|
7.68
|
10.28
|
12.58
|
15.28
|
|
weight(Kg)
|
3000
|
5000
|
9000
|
11000
|
|
Dimension(L*W*H) (mm)
|
2430*1800*2100
|
4050*2300*2100
|
4800*3600*2750
|
6500*5500*2750
|
Why our machine is better than other similar machines
1. Each filling machine element tha contacts with the liquid is made of high quality Stainless steel 304, if needed,
SS 316 is also available.
2. The filling machine adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping.
3. Most elements of the electrical system use famous international brand, such as Mitsubish, Omron brand.
4. The filling machine obtain the advantages of good abrasive resistance,high stability,low failure rate, etc. The
quality of the equipments reaches the international advanced level.
5. Advanced technologies, human-machine interface touch screen and PLC program control are adopted in this machine.

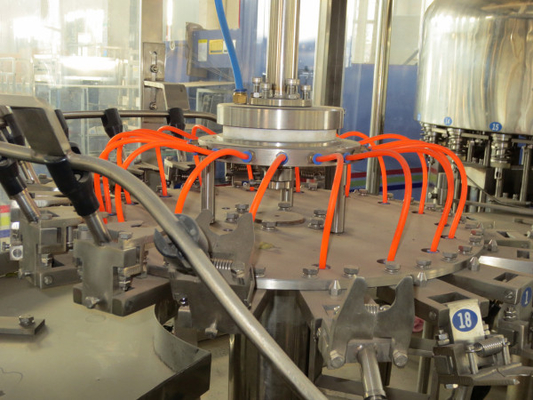

6. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
7. Easy to operate, save the cost of workers.
