Machine advantage:
1. The RCGF hot drink filling machine For green tea
2. It is Suit for 300ml-2000ml bottle
3. It is washing filling capping 3 in 1 machine full automatic
4. Our company have passed CE, ISO certification
General description

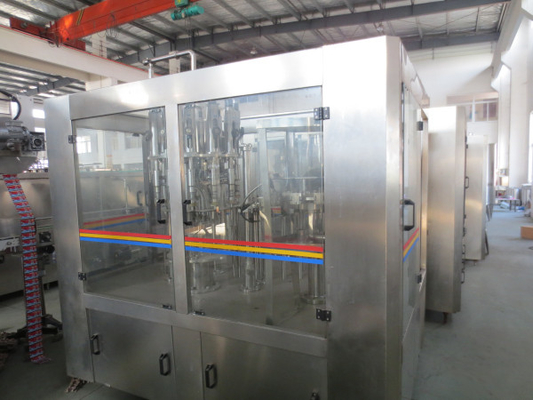

3-in-1 fruit juice filling machine monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of non-carbonated energy drinks, juice, tea, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.

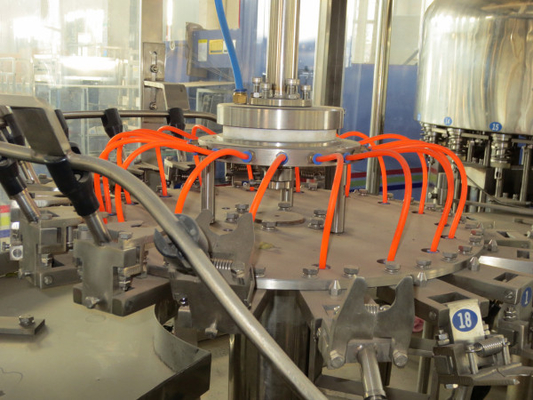

Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
Rinsing machine adopts original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.
Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° angle ensures to wash all side of the bottle, and can save the water.

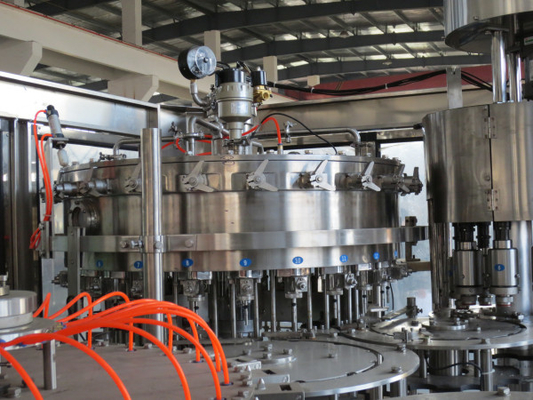

The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm.
The filling valve material is SUS304
The filling system has liquid level automatic control.
Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck ,it start to fill.
Bottle is conveying by the wheel in the filling part.
The juice or other hot beverage can be backflow by return tank to control filling temperature.
Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. our screw capping has following feature.
The main technical parameters:
|
Model:
|
RCGF18-18-6
|
RCGF32-32-10
|
RCGF60-60-15
|
RCGF80-80-18
|
|
Production Capacity(600 ml)(b/h)
|
5000-7000
|
12000-15000
|
25000-28000
|
33000-36000
|
|
Filling Precision
|
1%(liquid Level)
|
|
Polyester Bottle Standard(mm)
|
Bottlediameterφ50-φ110 Height:150-310
|
|
Suitable Cap Shape
|
Plastic Screw Cap
|
|
Water Pressure of Washing bottle(MPa)
|
0.2-0.25
|
|
Power(kW)
|
7.68
|
10.28
|
12.58
|
15.28
|
|
weight(Kg)
|
3000
|
5000
|
9000
|
11000
|
|
Dimension(L*W*H) (mm)
|
2430*1800*2100
|
4050*2300*2100
|
4800*3600*2750
|
6500*5500*2750
|
Why our machine is better than other similar machines
1. Each filling machine element tha contacts with the liquid is made of high quality Stainless steel 304, if needed,
SS 316 is also available.
2. The filling machine adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping.
3. Most elements of the electrical system use famous international brand, such as Mitsubish, Omron brand.
4. The filling machine obtain the advantages of good abrasive resistance,high stability,low failure rate, etc. The
quality of the equipments reaches the international advanced level.
5. Advanced technologies, human-machine interface touch screen and PLC program control are adopted in this machine.
6. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
7. Easy to operate, save the cost of workers.
