Machine advantage:
1. The RCGF hot drink filling machine For green tea
2. It is Suit for 300ml-2000ml bottle
3. It is washing filling capping 3 in 1 machine full automatic
4. Our company have passed CE, ISO certification
Character:
The material of the bottles can be PET,glass and so on.The functiion of fluent and fast filling action, high filling precision, reliable capping and low material loss makes it effectively prevent secondary polluction of the neck with high automation in the whole process. It can achieve the replacement of different bottles only by exchanging equivalent parts.
Feature:
1. The suspending bottle-neck clamping design assures whole production line more stable during the working process and it also avoids malfunctions caused by the different bottle thickness or height. The design also dramatically reduces the required quantities of interchange parts which make it more convenient to change different types of bottles on washing, filling and capping.

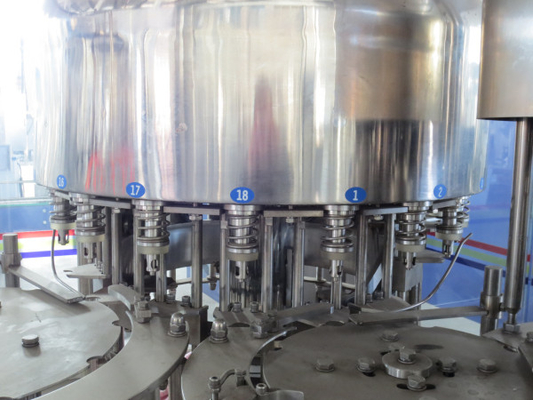

2. Advanced pump filling technology which assure quick filling and high accuracy of liquid level control.
3. Magnetic torque is applied on bottle screw-capping. Constant screw capping power can be adjustable stepless and therefore will not hurt the bottles at all.
4. Horizontal swirl cap sorting device is applied to avoid damaging caps. No caps, no capping; No caps, feeding system run automatically.
5. Human-machine interface touch-screen and PLC control system are adopted on the machine. Liquid level in the tank is controlled automatically. No bottles, no filling, no capping.
6. All parts connected with water are made of food grade stainless steel.
7. All main components makers are world-known manufacturers
The main technical parameters:
|
Model:
|
RCGF18-18-6
|
RCGF32-32-10
|
RCGF60-60-15
|
RCGF80-80-18
|
|
Production Capacity(600 ml)(b/h)
|
5000-7000
|
12000-15000
|
25000-28000
|
33000-36000
|
|
Filling Precision
|
1%(liquid Level)
|
|
Polyester Bottle Standard(mm)
|
Bottlediameterφ50-φ110 Height:150-310
|
|
Suitable Cap Shape
|
Plastic Screw Cap
|
|
Water Pressure of Washing bottle(MPa)
|
0.2-0.25
|
|
Power(kW)
|
7.68
|
10.28
|
12.58
|
15.28
|
|
weight(Kg)
|
3000
|
5000
|
9000
|
11000
|
|
Dimension(L*W*H) (mm)
|
2430*1800*2100
|
4050*2300*2100
|
4800*3600*2750
|
6500*5500*2750
|
Why our machine is better than other similar machines
1. Each filling machine element tha contacts with the liquid is made of high quality Stainless steel 304, if needed,
SS 316 is also available.
2. The filling machine adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping.
3. Most elements of the electrical system use famous international brand, such as Mitsubish, Omron brand.
4. The filling machine obtain the advantages of good abrasive resistance,high stability,low failure rate, etc. The
quality of the equipments reaches the international advanced level.
5. Advanced technologies, human-machine interface touch screen and PLC program control are adopted in this machine.
6. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
7. Easy to operate, save the cost of workers.
