Machine advantage:

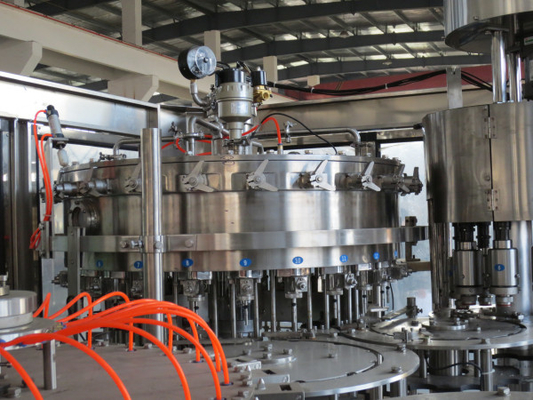

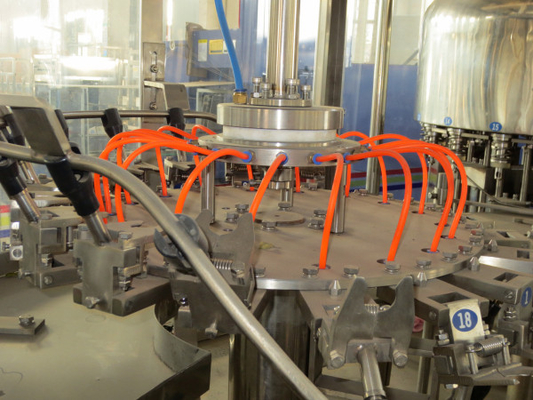

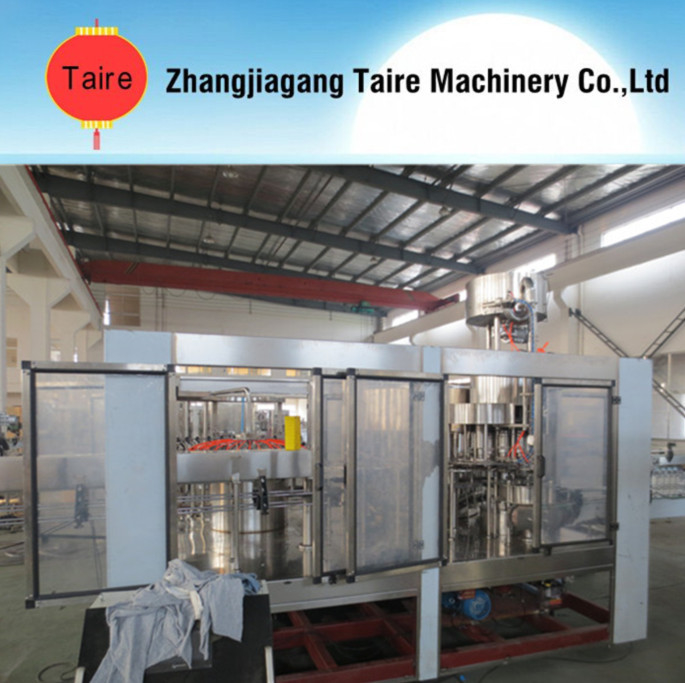

1. The RCGF hot drink filling machine For green tea
2. It is Suit for 300ml-2000ml bottle
3. It is washing filling capping 3 in 1 machine full automatic
4. Our company have passed CE, ISO certification
Character:
The material of the bottles can be PET,glass and so on.The functiion of fluent and fast filling action, high filling precision, reliable capping and low material loss makes it effectively prevent secondary polluction of the neck with high automation in the whole process. It can achieve the replacement of different bottles only by exchanging equivalent parts.
Feature:
1.This machine has a compact structure, perfect control system, easy to operate and highly automated.
2.The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.

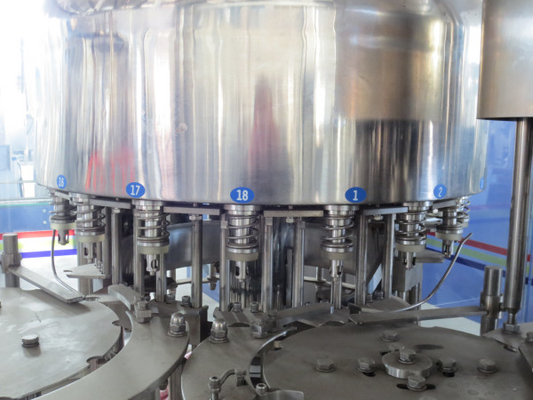

3.By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
4.The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
5.This machine has a high efficient cap arranging system, perfect cap feeding and protection device.
6.Equipped with perfect clean management system to ensure the bottle clean.
7.Only by changing the star-wheel, can realize to fill the changed bottle shape.
8.The machine adopts perfect overload protective device can ensure the operator and machine safe.
9.This machine adopts adjustable frequency converter.
10.The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
11.The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
12.The electric components and pneumatic components are all introduced from world famous brand products.
The main technical parameters:
|
Model:
|
RCGF18-18-6
|
RCGF32-32-10
|
RCGF60-60-15
|
RCGF80-80-18
|
|
Production Capacity(600 ml)(b/h)
|
5000-7000
|
12000-15000
|
25000-28000
|
33000-36000
|
|
Filling Precision
|
1%(liquid Level)
|
|
Polyester Bottle Standard(mm)
|
Bottlediameterφ50-φ110 Height:150-310
|
|
Suitable Cap Shape
|
Plastic Screw Cap
|
|
Water Pressure of Washing bottle(MPa)
|
0.2-0.25
|
|
Power(kW)
|
7.68
|
10.28
|
12.58
|
15.28
|
|
weight(Kg)
|
3000
|
5000
|
9000
|
11000
|
|
Dimension(L*W*H) (mm)
|
2430*1800*2100
|
4050*2300*2100
|
4800*3600*2750
|
6500*5500*2750
|
Why our machine is better than other similar machines
1. Small profits and quick returns is our business policy, so the water bottling line is worth every cent.
2. We focus on advanced supply chain management, which can ensure the raw materials are with
good quality and competitive price.
3. Workers, engineers and boss of our company have spent more than 10 years in beverage
machinery industry,so they have rich experience to provide Turn Key project Service.
4. There are several engineers available to oversea service. As long as our customers need them,
they can leave for your country as soon as possible, our principle to let our production line always runsnormally.
5. We can update the production status for our customer once per week, our target is to let our
customer receive goods on time.
About our company
We can provide beverage filling line as below:
1).Complete mineral & pure water production line
2).Complete fruit juice production line
3).Complete soft drink production line
4).Gallons water production line
5). Beer filling & packaging line
We strictly manufacture and manage according to IOS9001 System.And we sincerely welcome customers all over the world visit our company,or visit our website.
After-sale servic
1. 1 year quality warranty and supply spare parts at low cost for life span after sale. We keep the original drawings of spare parts, so it can match with the rest part of machine.
2. 24 hours/365 days online technical service.
3. Training offered
